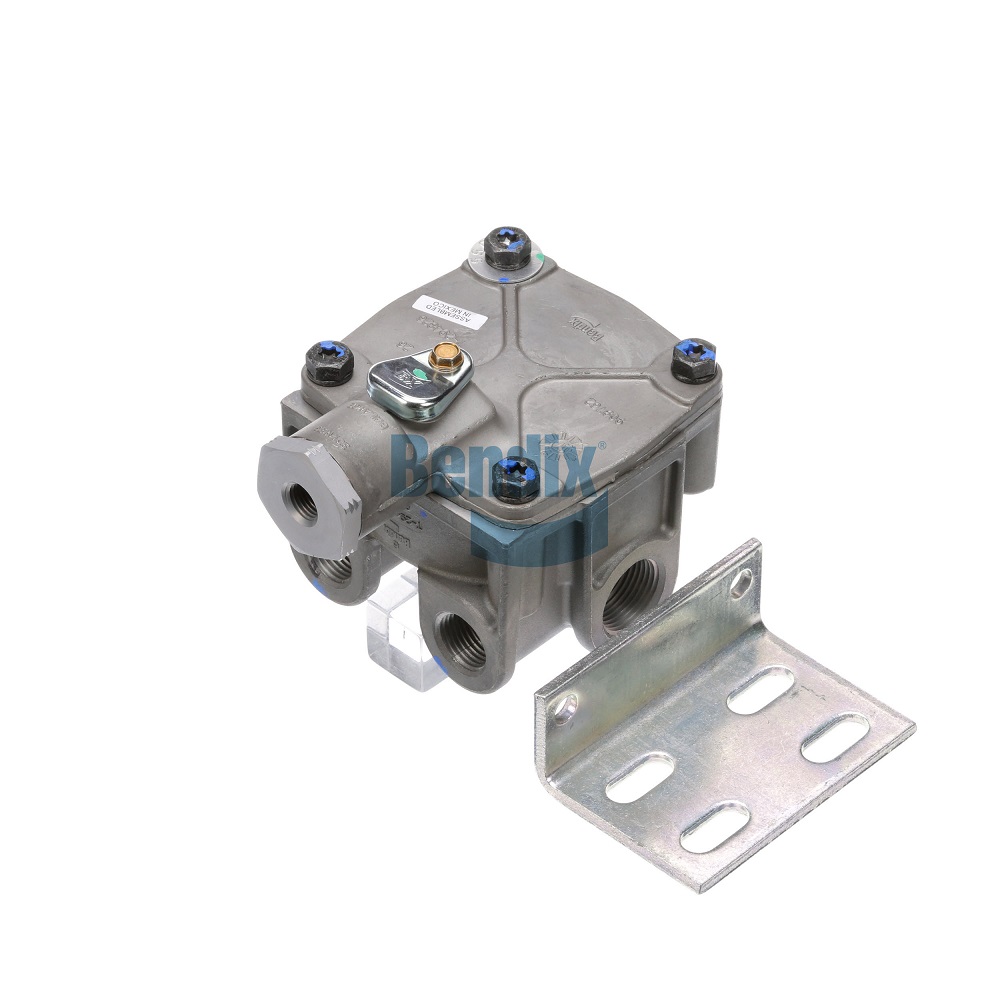

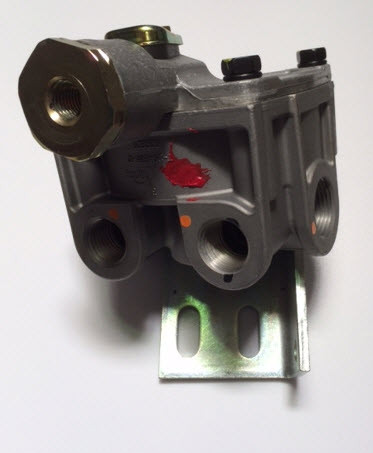

CD103294 Relay Valve1 RELAY R-14H 5.5PSI SAME AS 106165
Technical Information:
Mounting: .96 IN x .40 IN Slot (4x)
Mounting Bracket Location: Loose in Box
Body Configuration: 2 SUP / 2 DEL (H)
Supply Port 1: 3/4-14 NPT
Supply Port 2: 3/4-14 NPT
Control / Secondary Service Port: 1/4-18 NPT
Control Port Orientation (CW from Front Face):
0°
Balance / Primary Service Port:
1/8-27 NPT (with Cover)
Delivery Port 1: 1/2-14 NPT
Delivery Port 2: 1/2-14 NPT
Exhaust Port: Dust Shield
Crack Pressure: 5.5 PSI
TMC Washer: RV055
Minimum Operating Temperature: -40 °F (-40 °C)
Viewed
1) Installation instructions are not included in all instances. If you or your customers require installation instructions, please ask before ordering. All products should be installed only according to the intended purpose and only by specialist trained personnel. 2) The parts offered are reproductions. The specified original replacement parts numbers are for the purpose of comparison. This information has been complied to the best of our abilities, but errors cannot be excluded. We are unable to accept liability for the accuracy of the specifications. The capability for use must be checked before each installation.
