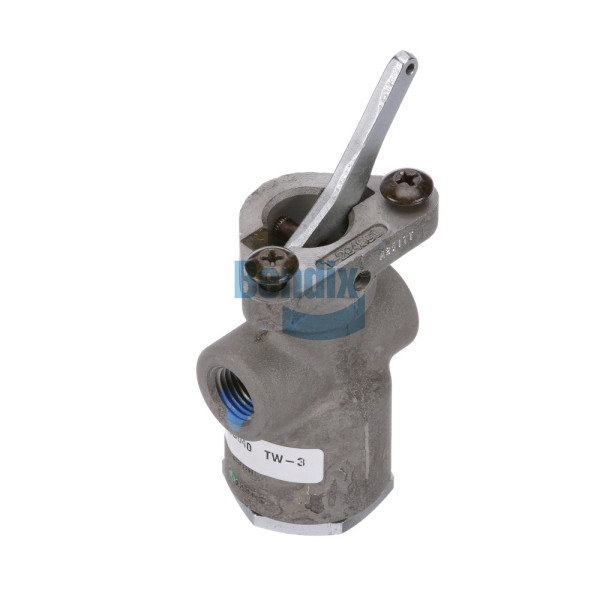

CD283040 Pressure Control Valve1 TW-3 CONT VALVE
Technical Information:
Mounting: #10-24 UNC-2B (2x)
Supply Port: 1/4-18 NPT
Delivery Port 1: 1/4-18 NPT
Delivery Port 2: 1/4-18 NPT
Exhaust Port: Vent
Product Type: 2-Position Valve
Mechanism Type: Positioning
Actuator Style: Flipper
Lever Position (Initial): Toward Exhaust
Total Travel: 75°
Actuator Material: Steel
Actuator Finish: Chrome-Plated
Minimum Operating Temperature: -40 °F (-40 °C)
Viewed
1) Installation instructions are not included in all instances. If you or your customers require installation instructions, please ask before ordering. All products should be installed only according to the intended purpose and only by specialist trained personnel. 2) The parts offered are reproductions. The specified original replacement parts numbers are for the purpose of comparison. This information has been complied to the best of our abilities, but errors cannot be excluded. We are unable to accept liability for the accuracy of the specifications. The capability for use must be checked before each installation.
