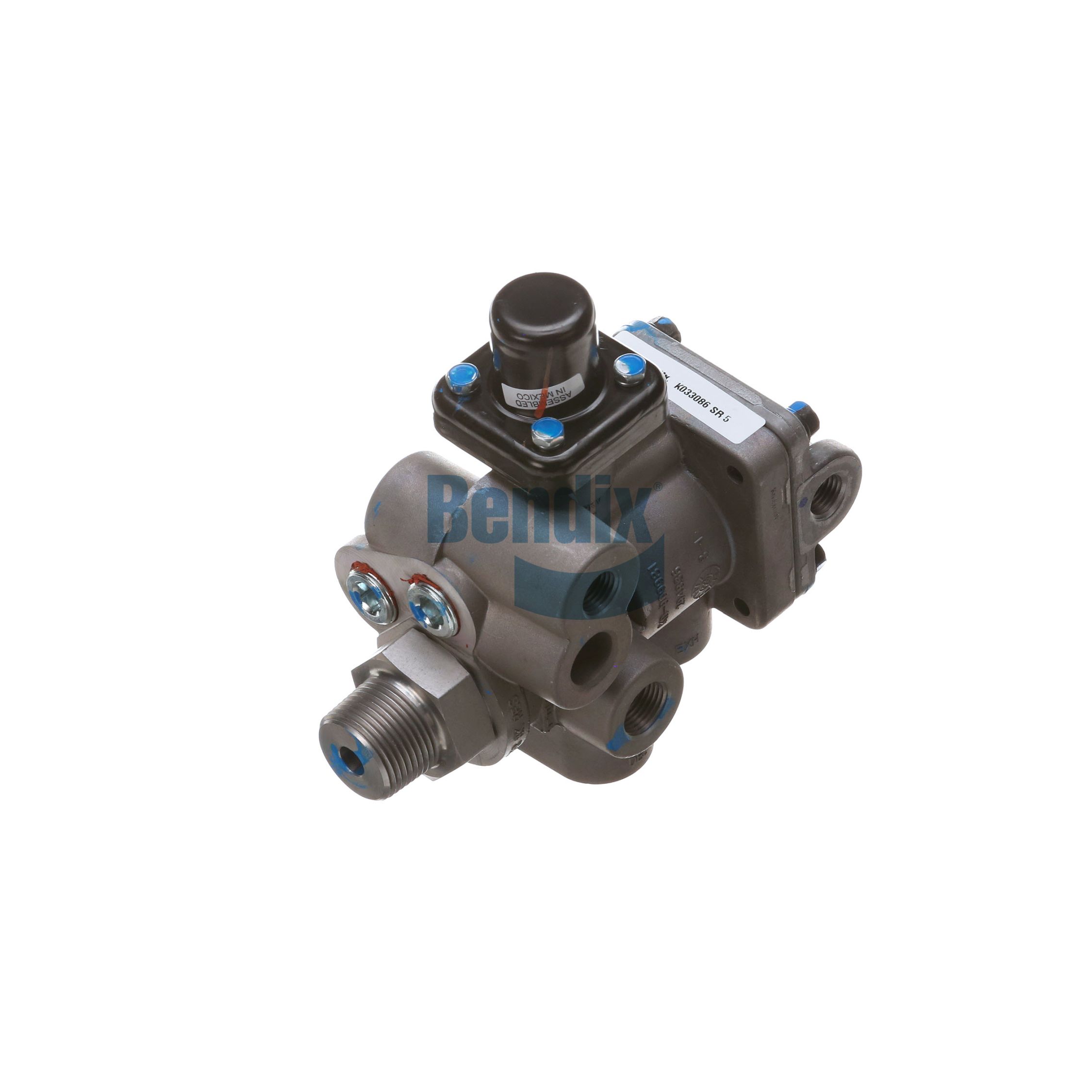

KBK033086 Brake Valve, parking brake1 SP/BRAKE VALVE SR-5 C/W ANTI COMPOUND

Technical Information:
Push Rod Length (to Yoke Pin Center when Applicable) [IN]:
Outside Diameter [mm]: 15
Operating Voltage Range: 8 VDC - 16 VDC
Maximum delivery pressure [bar]: 6.2
Opposite handed version: K031532N00
Safety valve pressure [bar]: 15 +4
Customer part number: 03080009520
Customer part number: 10023632
Customer part number: 10023629
ECU Type: Integrated Processor
Delivery Port 2: M22 X 1.5-6H THD
Brake Charging Priority: Spring Brake Priority
Detail Title: Washer
Length without lever: 70
Pitch diameter [mm] measure B1: 18.7
Unloader cut-out pressure [bar]: 12,5 +/-0,5
Used for: disassembly front axle of K253817N50
1) Installation instructions are not included in all instances. If you or your customers require installation instructions, please ask before ordering. All products should be installed only according to the intended purpose and only by specialist trained personnel. 2) The parts offered are reproductions. The specified original replacement parts numbers are for the purpose of comparison. This information has been complied to the best of our abilities, but errors cannot be excluded. We are unable to accept liability for the accuracy of the specifications. The capability for use must be checked before each installation.
