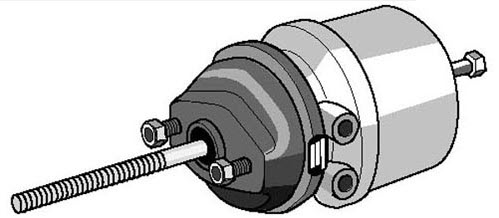

KBBX9400 Multi-function Brake Cylinder1 T2024 SP/BRAKE 57/57
Technical Information:
Type size Service / Spring (Diaphragm and piston): T20/24
Stroke (Service / Spring portion) [mm]: 57/57
Additional description: + mounting kit II37099
Service Portion Version (Diaphragm / Piston): Diaphragm
Spring portion Version (Diaphragm / Piston): Piston
Connection (Front cover / Intermediate flange):
Clamp Ring
Connection (Intermediate flange / Rear housing):
Bayonet
Service Portion Port(s) thread size: N10164
Spring Portion Port(s) thread size: N10164
Radial port(s) orientation -
clockwise from mounting studs/hol:
0
Clamp ring ears orientation -
clockwise from mounting studs/hol:
45
Service output at 6.5 bar &
30 mm stroke [kN]: 7.8
Spring portion output force at 30 mm stroke [kN]: 8
Mounting studs / holes centres [mm]: 120.7
Mounting studs / holes thread size:
M16x1,5
Mounting studs length / holes depth [mm]: 33
Push rod thread: M16x1,5
Push rod thread length [mm]: 300
Front cover shape: Diamond
Function / description of release unit: Standard
Wading Ability: No
