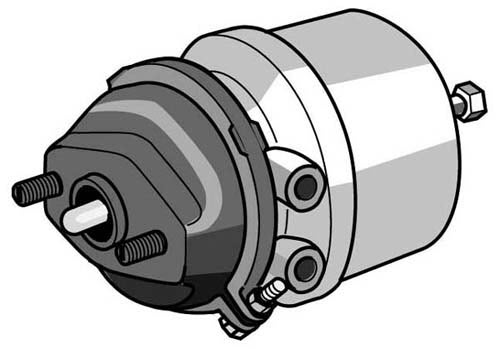

KBBS8393 Multi-function Brake Cylinder1 SP/BRAKE T1824
Technical Information:
Stroke (Service / Spring portion) [mm]: 64/64
Additional description: T18/24HFL3S
Service Portion Version (Diaphragm / Piston): Diaphragm
Spring portion Version (Diaphragm / Piston): Piston
Connection (Front cover / Intermediate flange):
Clamp Ring
Connection (Intermediate flange / Rear housing):
Bayonet
Service Portion Port(s) thread size: M16x1,5
Spring Portion Port(s) thread size: M16x1,5
Radial port(s) orientation -
clockwise from mounting studs/hol:
330
Clamp ring ears orientation -
clockwise from mounting studs/hol:
135
Service output at 6.5 bar &
30 mm stroke [kN]: 7.3
Spring portion output force at 30 mm stroke [kN]: 10.8
Mounting studs / holes centres [mm]: 120.7
Mounting studs / holes thread size:
M16x1,5
Mounting studs length / holes depth [mm]: 43
Push rod protrusion [mm]: 15
Front cover shape: Diamond
Function / description of release unit: Short
Supplied with Port adaptors: No
Supplied with mounting nuts: No
Opposite handed version: BS8392
Wading Ability: No
