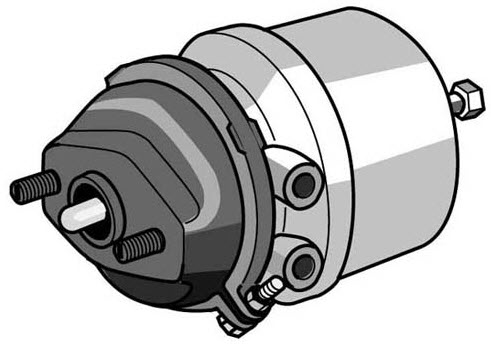

KBBS8302 Multi-function Brake Cylinder1 T1614 SP/BRAKE DISC SCANIA BUS

Technical Information:
Unloader pressure control range [bar]: 0,9+/0,2
Has opposite handed version: II40004F
Type size Service / Spring (Diaphragm and piston): T20/24
Safety valve pressure [bar]: 13.4
Unloader port(s) size: 1/4-18 NPT
Clamp ring ears orientation -
clockwise from mounting studs/hol:
Spline type: 37 SPLINE ANSI B92,1
Service output at 6.5 bar &
30 mm stroke [kN]: 10.47
Safety valve pressure [bar]: 8,5+1.7
Oil supply port size: Ø6
Effective length [mm]: 114
Air Inlet port(s) size: 3/8" - NPTF
Effective length [mm]: 114,3/139,7±0,76
Max. spring force to E [N] measure F: 91
To suit wheel size: 17,5"
1) Installation instructions are not included in all instances. If you or your customers require installation instructions, please ask before ordering. All products should be installed only according to the intended purpose and only by specialist trained personnel. 2) The parts offered are reproductions. The specified original replacement parts numbers are for the purpose of comparison. This information has been complied to the best of our abilities, but errors cannot be excluded. We are unable to accept liability for the accuracy of the specifications. The capability for use must be checked before each installation.
