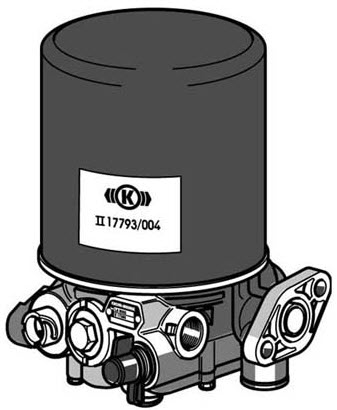

KBLA9035 Air Dryer, compressed-air system1 AIRDRYER MERC
Technical Information:
Air Inlet port(s) size: M22x1,5
Air Delivery port(s) size: 21: M22x1.5, Flange
22: N10164 NG8, 23: DIN ISO 3583-Form B, 24: N10164-NG12
Purge control: Reservoir; Port: Voss NG8 M12
Safety valve pressure [bar]: 12.5 + 2.5
Unloader cut-out pressure [bar]: 10+/-0,2
Unloader cut-in pressure [bar]: 9.5
Unloader pressure control range [bar]: 0.5±0.4
With internal Silencer: No
Exhaust Connector: Ø 20,0 mm
Exhaust Silencer fitted: No
Heater Connector Type: Bayonet ISO 15170 A1 - 2.1.14
Heater Voltage [volts]: 24
Cartridge type: OSC
Cartridge connection type: M39x1,5 right hand thread
