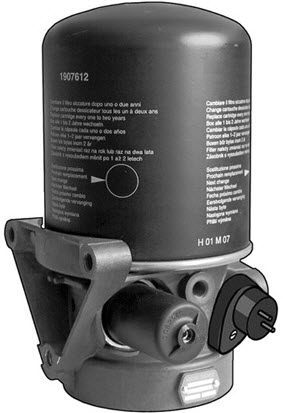

KBLA8210 Air Dryer, compressed-air system1 AIRDRYER C/W HEATER W/O heater= LA8209
Technical Information:
Air Inlet port(s) size: VOSS NG12 M22x1,5
Air Delivery port(s) size: VOSS NG12 M22x1,5
Purge control: Reservoir; Port: Voss NG8 M16x1,5
Safety valve pressure [bar]: 13,0
Unloader cut-out pressure [bar]: 10,0 +/-0,2
Unloader pressure control range [bar]: 1,0 +0,5
With internal Silencer: No
Exhaust Connector: Snap-on Connector
Exhaust Silencer fitted: No
Heater Connector Type:
Bayonet ISO 15170 A1 2.1.1.Ag/K3
Heater Voltage [volts]: 24
Cartridge type: Conventional
Cartridge connection type: M39x1,5 right hand thread
Viewed
1) Installation instructions are not included in all instances. If you or your customers require installation instructions, please ask before ordering. All products should be installed only according to the intended purpose and only by specialist trained personnel. 2) The parts offered are reproductions. The specified original replacement parts numbers are for the purpose of comparison. This information has been complied to the best of our abilities, but errors cannot be excluded. We are unable to accept liability for the accuracy of the specifications. The capability for use must be checked before each installation.
