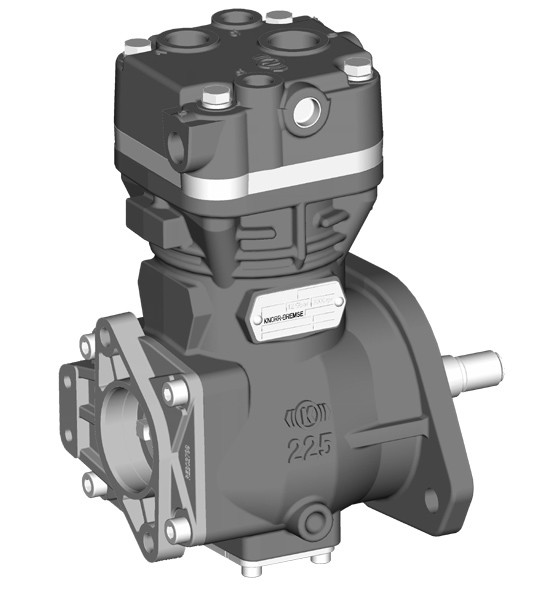

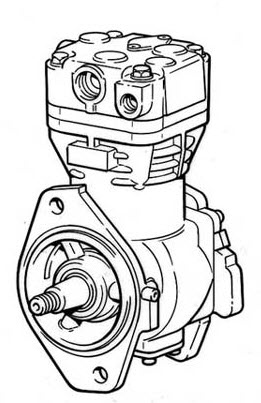

KBLK3846 Compressor, compressed-air system1 COMPRESSOR
Technical Information:
Title Extension: 225cc
Air Inlet port(s) size: M26x1,5
Air Delivery port(s) size: M22x1,5
Cubic Capacity: 225
Compressor Mounting: Flange
With Through Drive: Yes
With ESS feature: No
Lubrication: with Engine Oil
Oil supply port size: Flange
Cooling: Water
Water port(s) size: M16x1,5
Supplied with clutch: No
Viewed
1) Installation instructions are not included in all instances. If you or your customers require installation instructions, please ask before ordering. All products should be installed only according to the intended purpose and only by specialist trained personnel. 2) The parts offered are reproductions. The specified original replacement parts numbers are for the purpose of comparison. This information has been complied to the best of our abilities, but errors cannot be excluded. We are unable to accept liability for the accuracy of the specifications. The capability for use must be checked before each installation.
