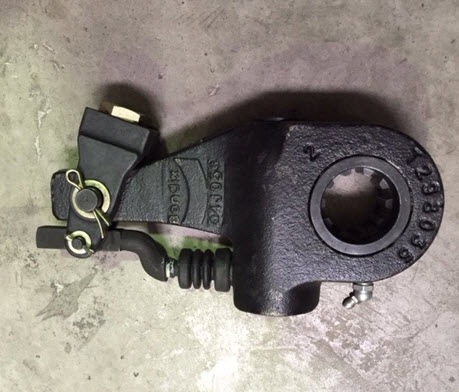

CD065170 Adjuster, braking system1 AUTO SLACK 10x1.50 5.5" STRAIGHT
Technical Information:
Product Type: Link Style
Spline Diameter - Teeth: Ø 1.50 IN - 10 Spline
Arm Length 1: 5.50 IN
Arm Offset: No Offset
Inclination Angle (Body Angle): 0°
Clevis / Yoke Style: Easy-On (EO)
Adaptor Size: 5/8-18 UNF-2B
Adaptor Length: .78 IN (19.8 MM)
Lube Fitting Type: 45° Elbow
Lube Fitting Position: 0°
Torque Rating: 20,000 IN LBS
Minimum Operating Temperature: -40 °F (-40 °C)
Viewed
1) Installation instructions are not included in all instances. If you or your customers require installation instructions, please ask before ordering. All products should be installed only according to the intended purpose and only by specialist trained personnel. 2) The parts offered are reproductions. The specified original replacement parts numbers are for the purpose of comparison. This information has been complied to the best of our abilities, but errors cannot be excluded. We are unable to accept liability for the accuracy of the specifications. The capability for use must be checked before each installation.
